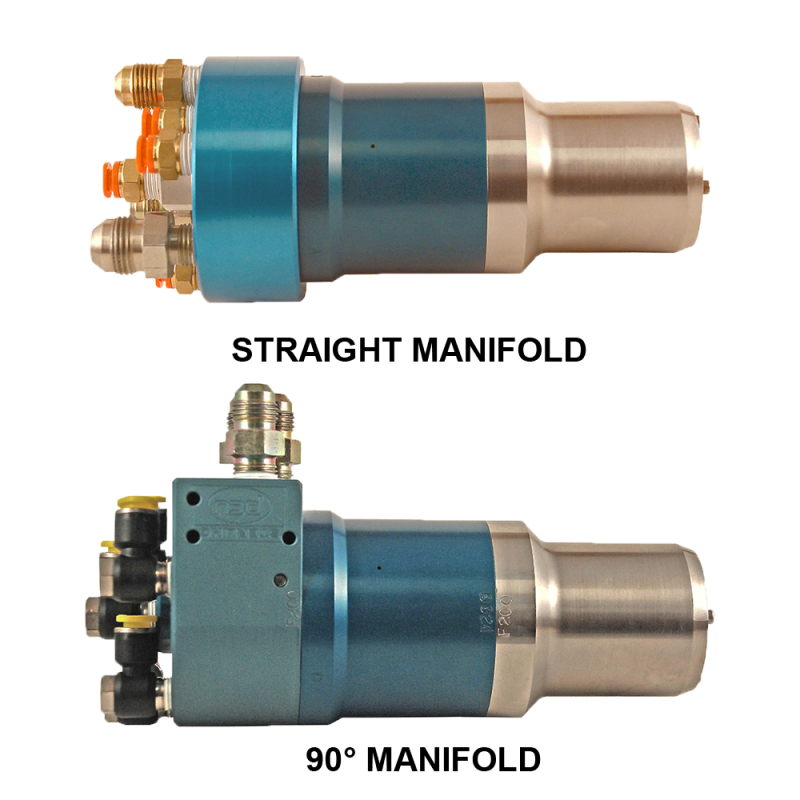

The 104 charging tool is the interface adapter for an R134a refrigerant charging system. It connects to the High-Side process fitting for refrigerant/oil charging. The tool allows for minimum refrigerant loss with automatic operation upon connection to the fitting. The tool is used with flowmeter refrigerant charging systems, is air operated and light weight. Comes as straight manifold or 90 degree manifold.
Series 104 can easily be modified to mate with Series 250: Hansen 2HK, 3HK, and J639 Low-Side Fittings. Please contact PCU Engineering for Custom Series 104 to meet your application.
STANDARD STOCK P/N: 104001-004 & 104008-952
Features
- Minimum Refrigerant Loss
- Zero Connection Force with Clamp
- Automatic Disconnect Capability
- High Vacuum, Refrigerant & Oil Flow Rates
- Separate Refrigerant & Oil Connections
- Economical
Specifications
- Factory Air Supply: 70 psig (4.9 kg/cm2)
- Vacuum Port Fitting: 1/2″ JIC flare
- Refrigerant & Oil Port Fitting: 3/8″ JIC flare
- Air Port Fitting: 1/4″ Dia. One Touch Connectors
- Weight: 4.25 lbs (1.9 kg)
- Vacuum Range: 0-760 TORR (0-760 mmHg)
- Refrigerant: HFC-134a (Opens with pressure air @ 80 psig)
- Oil: Polyolester or PAG (Opens with pressure air @ 80 psig)
- Tool Flow Rate (typical): 300 g/sec at 200 psi (Contact PCU for slower flow rates)
- Maximum Refrigerant Pressure:
- 200 psig @ 70 psi air
- 300 psig @ 80 psi air
- 400 psig @ 90 psi air
- 500 psig @ 100 psi air
- Air Pilots: (Vacuum, Refrigerant, Oil, Clamp & Stem Air)
- Process Fitting Compatibility: SAE J639
- Process Fitting Nose Seal: Molded
- Process Fitting Clamp System: PCU BalLoc
- Flow Rate (Refrig., Vacuum, Oil): 0.9 Cv (typical)
PATENTS: This tool is manufactured under U.S. Patent No. 6,298,886.
