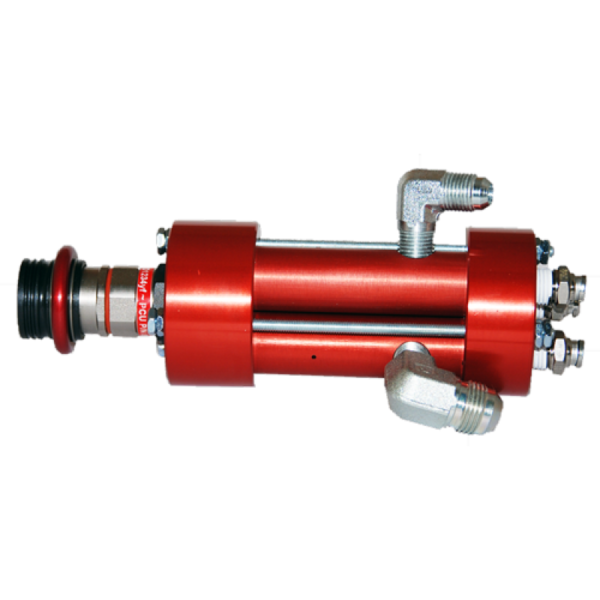

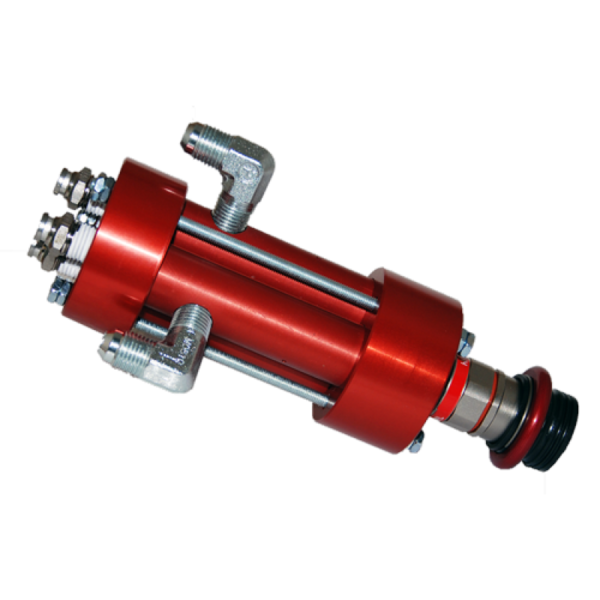

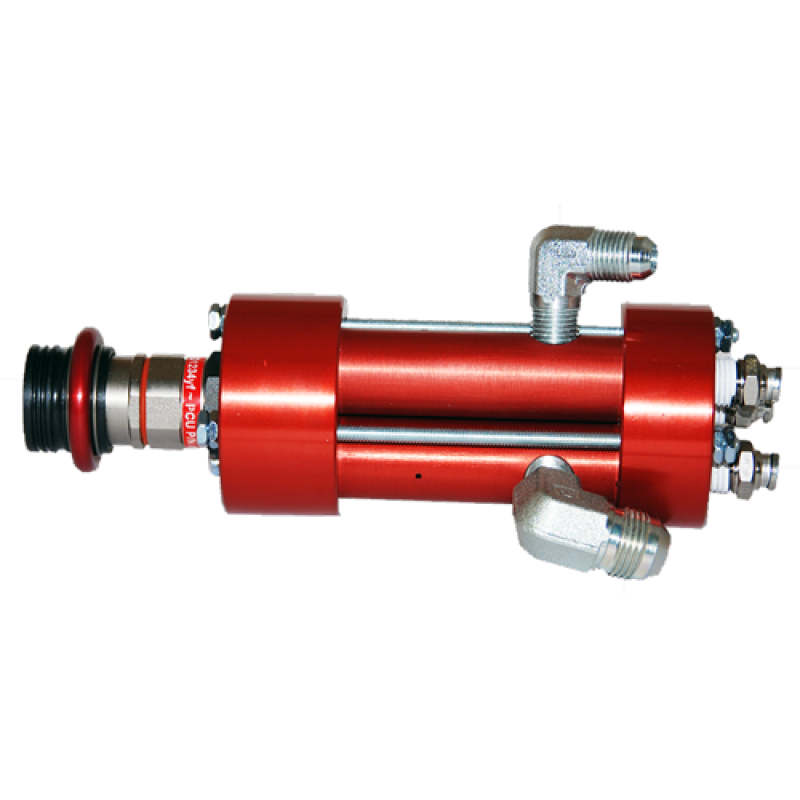

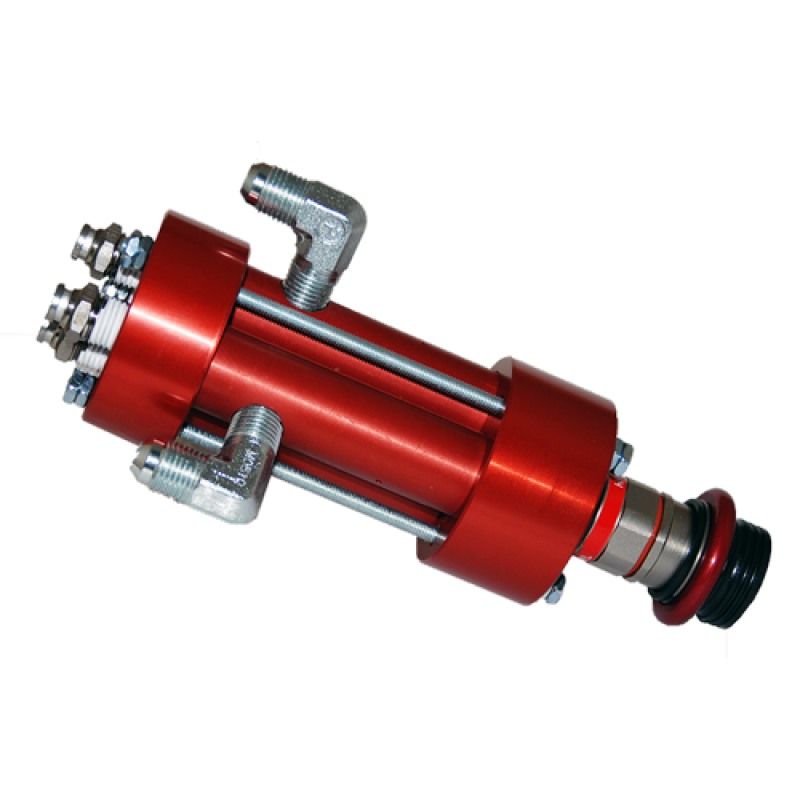

The 130 charging tool is the interface adapter for a refrigerant / oil charging system which connects to the SAE J639 High-Side or Low-Side process fitting. The tool allows for minimum refrigerant loss with automatic operation upon connection to the fitting. The tool is used with flowmeter refrigerant charging systems, and is air operated and light weight. The tool contains three separate fluid circuits which can accommodate vacuum, refrigerant, salvage or oil.
Features
- Minimum Refrigerant Loss
- Automatic Operation after Manual Clamp
- High Vacuum, Refrigerant & Oil Flow Rates
- Separate Refrigerant & Oil Connections
- Easy Valve Body Maintenance
- Economical
- Repairable
Specifications
- Factory Air Supply: 70 psig (4.9 kg/cm2)
- Vacuum Port Fitting: 1/2″ JIC flare
- Refrigerant: 3/8″ JIC flare
- Oil Port Fitting: 3/8″ SAE flare
- Air Port Fitting: 1/4″ Dia One Touch Connectors
- Weight: 2.4 lbs (1.09 kg)
- Vacuum Range: 0-760 TORR (0-760 mmHg)
- Refrigerant: HFO-1234yf (Opens with pressure air @ 80 psi)
- Oil: Polyolester or PAG (Opens with pressure air @ 80 psi)
- Standard Charge Rate: 50 g/s
- Maximum Refrigerant Pressure:
- 200 psig @70 psi air
- 300 psig @ 80 psi air
- 400 psig @ 90 psi air
- 500 psig @ 100 psi air
- Air Pilots: (Vacuum, Refrigerant, Oil)
- Process Fitting Compatibility: SAE J639
- Process Fitting Nose Seal: O-Ring
- Process Fitting Clamp System: PCU BalLoc
- Tool Valve Block Flow Capacity: 0.9 Cv (typical)
